The problem
Given the root
of a binary tree, imagine yourself standing on the right side of it, return the values of the nodes you can see ordered from top to bottom.
Examples

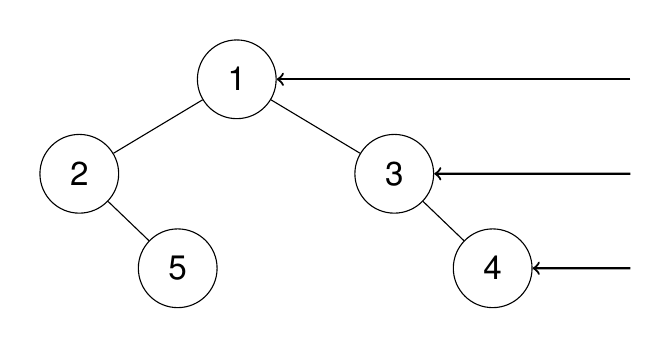

Input: root = [1,2,3,null,5,null,4]
Output: [1,3,4]
Explanation:

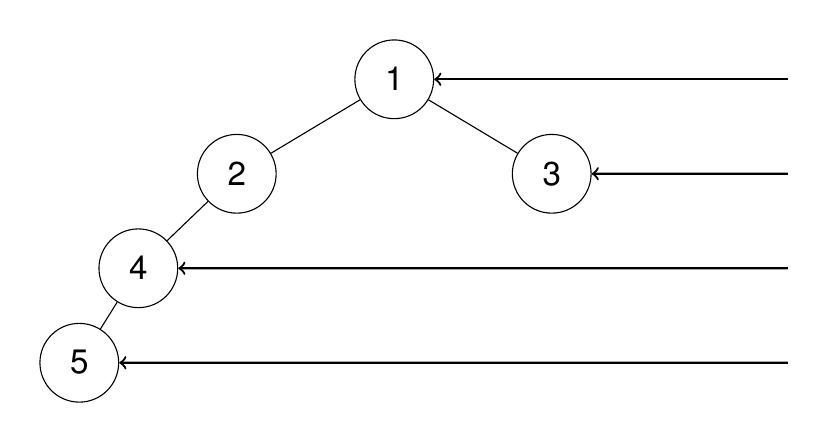

Input: root = [1,2,3,4,null,null,null,5]
Output: [1,3,4,5]
Explanation:
Input: root = [1,null,3]
Output: [1,3]
Input: root = []
Output: []
Constraints
- The number of nodes in the tree is in the range [0, 100].
- -100 <= Node.val <= 100
Explanation

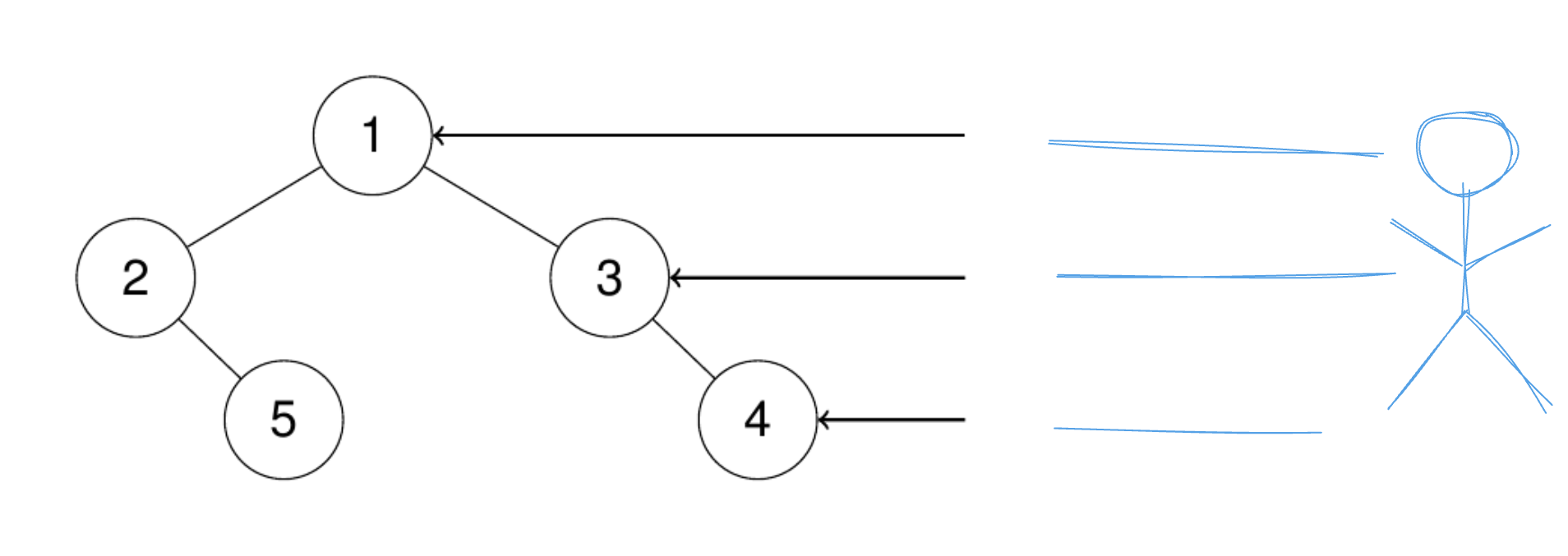

Let’s imagine that we have a person on the right side and if we look at the first example, we can see everything on the right side.
- We can see the
root
node with value1
- We can see node with value
3
- Lastly, we can see node with the value
4
But we can’t see nodes that are behind nodes that we can see, because they are blocking our view.

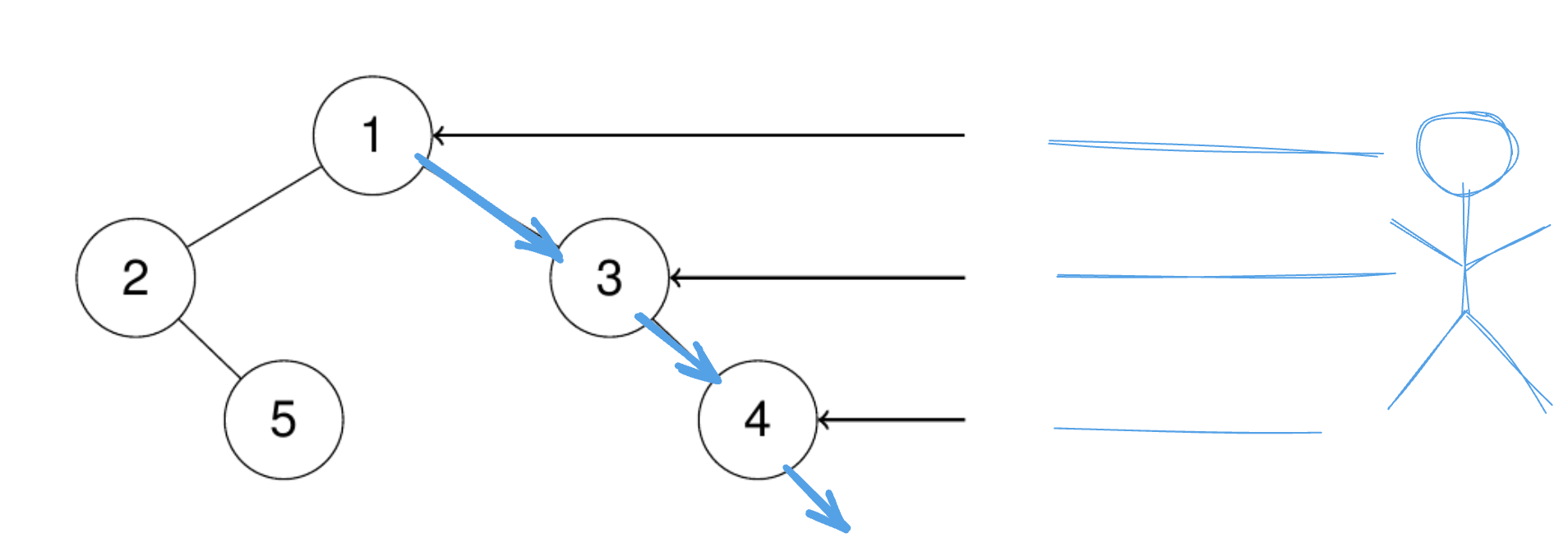

Your first thought of solving this problem might be to start from the root
and start going to the right and down and get every node on the right side. But it will not always work.

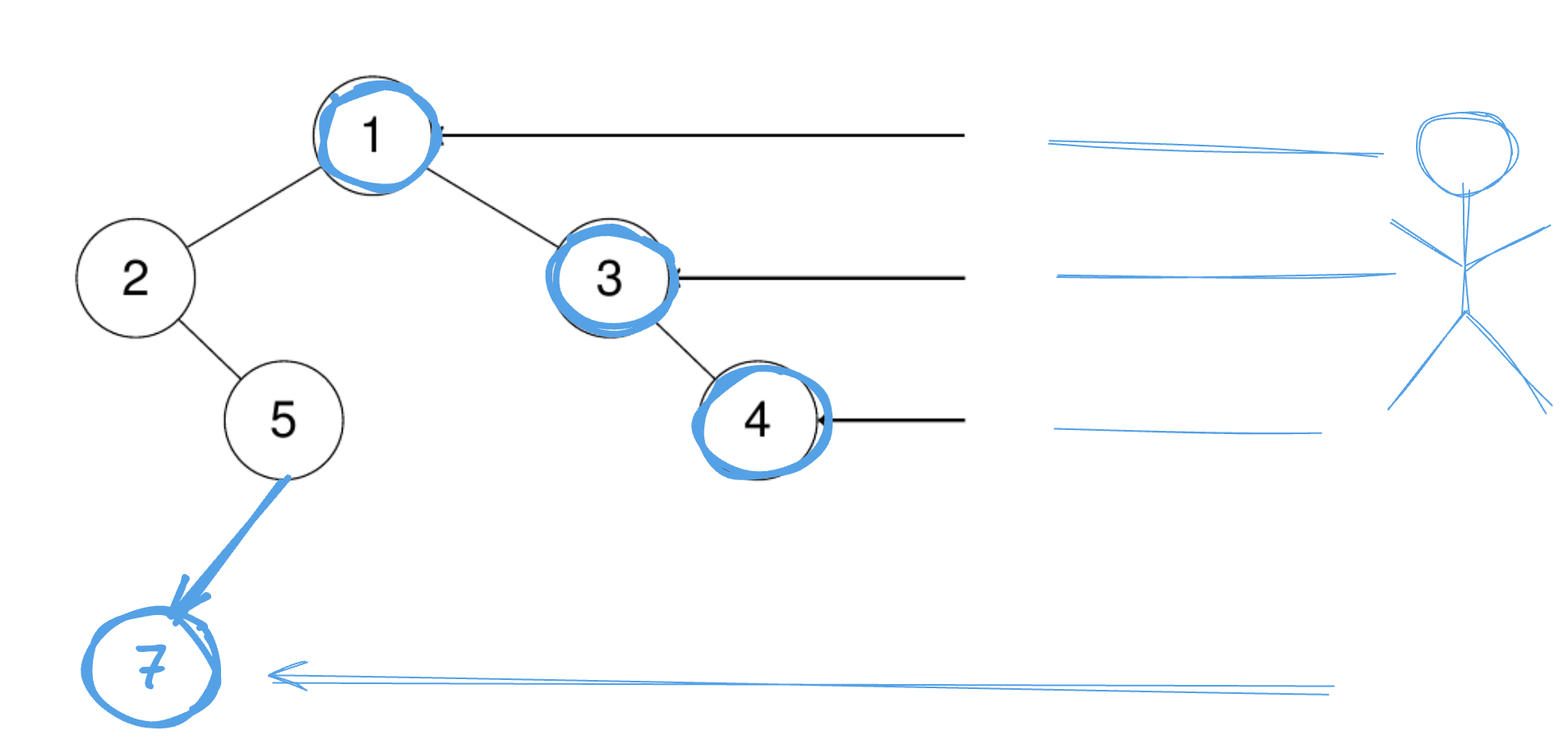

Imagine that on our left side, node with value 5
had a left child.
You can see that node with value 7
is not being blocked, therefore we need to include it into our result.
Depth First Search Solution
func rightSideView(_ root: TreeNode?) -> [Int] {
var res: [Int] = []
func dfs(_ node: TreeNode?, _ depth: Int) {
guard let node = node else {
return
}
if depth == res.count {
res.append(node.val)
}
dfs(node.right, depth + 1)
dfs(node.left, depth + 1)
}
dfs(root, 0)
return res
}
Explanation
One way to solve this problem is to use DFS algorithm.
We are going to have an additional depth
property that will help us add the first node that we see.
We prioritize right
side by visiting right
node, and ensure that we capture the rightmost values first.
Time/Space complexity
- Time complexity: O(n)
- Space complexity: O(n)
Breadth First Search Solution
func rightSideView(_ root: TreeNode?) -> [Int] {
guard let root = root else {
return []
}
var res: [Int] = []
var q: [TreeNode?] = [root]
while !q.isEmpty {
var rightSide: TreeNode?
let qLen = q.count
for i in 0 ..< qLen {
let node = q.removeFirst()
if let node = node {
rightSide = node
q.append(node.left)
q.append(node.right)
}
}
if let rightSide = rightSide {
res.append(rightSide.val)
}
}
return res
}
Explanation

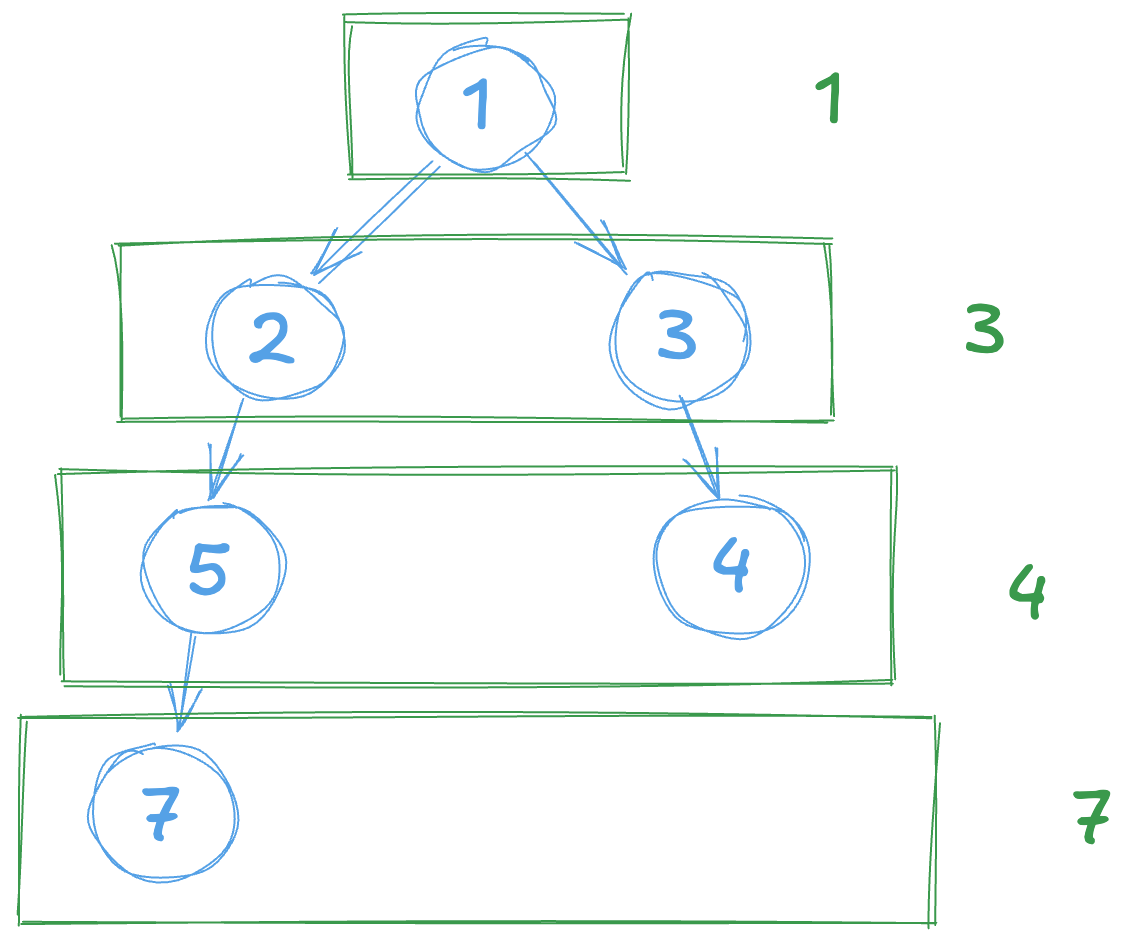

Another way to solve this problem is to use BFS algorithm, in other words it’s called level order traversal
.
We can frame this problem by finding the rightmost value at each level in our tree.
We are going to start from our root
- the first layer where we get value of 1
- Next, we are going to move to the second level where we have two nodes, so we are going to get the rightmost value that equals
3
- Next, we move to our third layer, where we are going to find the rightmost value
4
- Lastly, we move to the last layer, where you can see that we have only one node, so we get value that equals
7

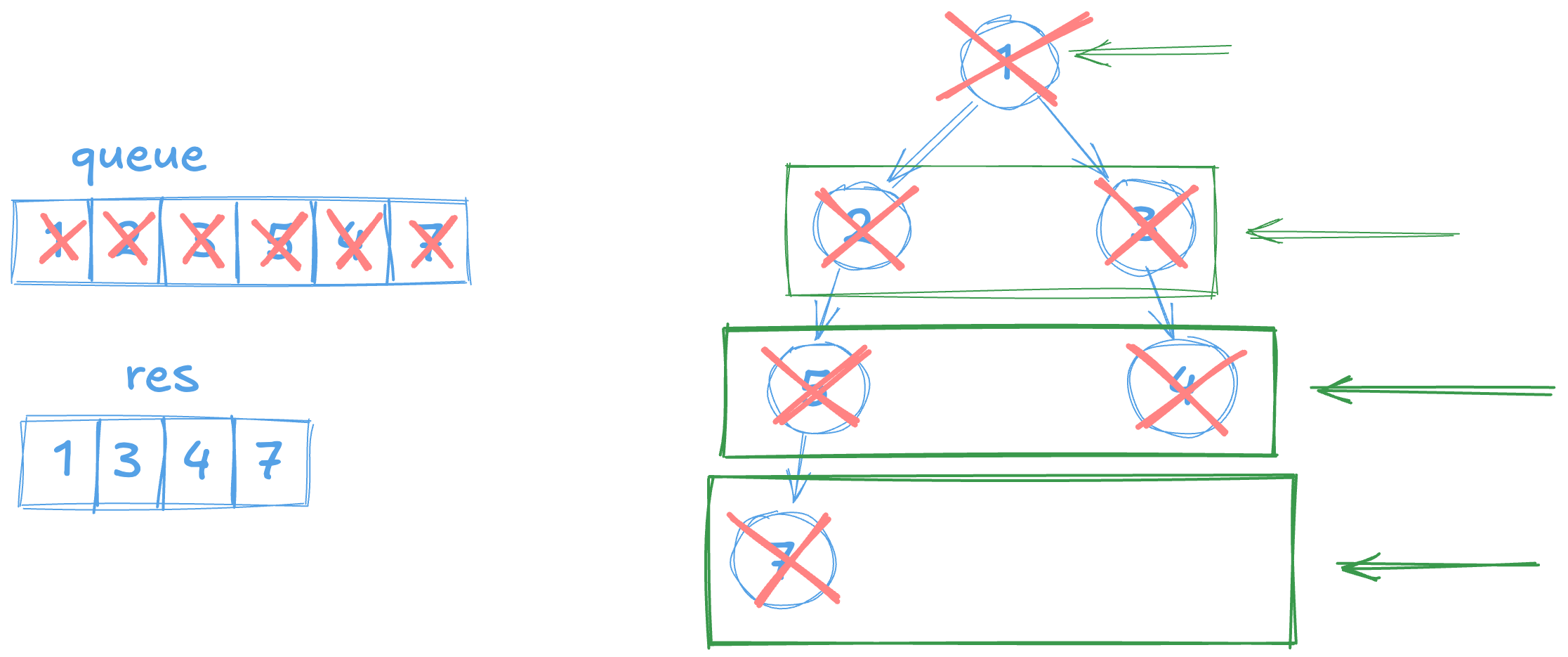

We are going to implement BFS algorithm by using a queue.
We will be adding nodes in order (left node first)
then the right node, because we always want to get the rightmost value when we add to our result.
- Initially, we are going to add our
root
node to ourqueue
- We are also going to have a
res
array - Next, we are going to take a look at our rightmost value in the queue and add
1
to ourres
- Next, we are no longer looking at the
root
node, now we are looking for its children, so we will takeleft
andright
child and add them to our queue. It’s important that we add nodes in order -left
first andright
second, so this way we can get the rightmost value when we add to ourres
- Next, we have the second level setup, so we are going to take the rightmost value
3
and add it to ourres
- Next, we are going to look at the
leftmost
value’s children nodes and add them to ourqueue
, and after that we are going topop
it - The same goes for the rightmost value - we are going to add its children and
pop
it
We will continue doing these steps until we reach the end of the tree.
Time/Space complexity
- Time complexity: O(n)
- Space complexity: O(n)
