The problem

Design a data structure that follows the constraints of a Least Recently Used (LRU) cache.

Implement the LRUCache class:

  • LRUCache(int capacity) Initialize the LRU cache with positive size capacity.
  • int get(int key) Return the value of the key if the key exists, otherwise return -1.
  • void put(int key, int value) Update the value of the key if the key exists. Otherwise, add the key-value pair to the cache. If the number of keys exceeds the capacity from this operation, evict the least recently used key.

The functions get and put must each run in O(1) average time complexity.

Examples

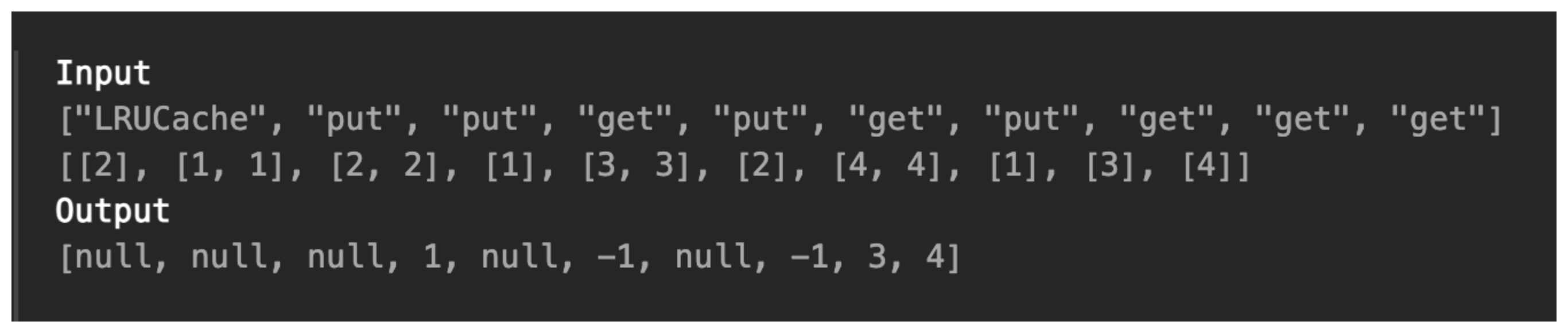

Input
["LRUCache", "put", "put", "get", "put", "get", "put", "get", "get", "get"]
[[2], [1, 1], [2, 2], [1], [3, 3], [2], [4, 4], [1], [3], [4]]
Output
[null, null, null, 1, null, -1, null, -1, 3, 4]

Explanation
LRUCache lRUCache = new LRUCache(2);
lRUCache.put(1, 1); // cache is {1=1}
lRUCache.put(2, 2); // cache is {1=1, 2=2}
lRUCache.get(1);    // return 1
lRUCache.put(3, 3); // LRU key was 2, evicts key 2, cache is {1=1, 3=3}
lRUCache.get(2);    // returns -1 (not found)
lRUCache.put(4, 4); // LRU key was 1, evicts key 1, cache is {4=4, 3=3}
lRUCache.get(1);    // return -1 (not found)
lRUCache.get(3);    // return 3
lRUCache.get(4);    // return 4

Constraints

  • 1 <= capacity <= 3000
  • 0 <= key <= 10^4
  • 0 <= value <= 10^5
  • At most 2 * 10^5 calls will be made to get and put.

Explanation

Let’s look at our example:

  • From the first operation we get our capacity that equals 2.
  • Next, we have put operation with pairs [1, 1]. We will be keeping added values in order because we want to remember in what order we added these values.
  • In the next operation we put pairs [2, 2].
  • At the next operation we are trying to get LRU value with key 1.

The way we are going to do this is by using a hashmap, because we can look up the key in O(1) time. We also are not going to create any additional memory, because the size of our hashmap will not be exceeding our capacity.

We will be using our hashmap by adding the key that was given in our input; as for value, we will be using a pointer to the node.

When we execute our third get operation, we will be returning value 1. When we executed the get operation, we made our pairs [1, 1] the most frequently used and pairs [2, 2] the least frequently used.

We are going to keep track of the most recent element and least frequently used element by using two pointers left and right, where the left pointer will be storing the LRU element and the right pointer will be storing the most recent element. Therefore, we are going to swap these two nodes.

Now we need to reorder our two nodes. The nodes will be connected with each other because we are using a doubly linked list that will allow us to swap nodes in O(1) time.

Next, we are going to execute our fourth put operation and put pairs [3, 3] to our hashmap. At this point we have a capacity of 2, and when we try to add a new key, we exceed it, so we need to remove the LRU value and pointer to it and replace it with the new key 3 and create a new pointer.

We will continue executing steps and follow the algorithm above until we reach the end of our input.

Doubly Linked List Solution

final class Node {
    let key: Int
    let val: Int
    var prev: Node?
    var next: Node?

    init(_ key: Int, _ val: Int) {
        self.key = key
        self.val = val
    }

}

class LRUCache {

    private let capacity: Int
    private var cache: [Int: Node]
    private var left: Node
    private var right: Node

    init(_ capacity: Int) {
        self.capacity = capacity
        self.cache = [:]
        self.left = Node(0, 0)
        self.right = Node(0, 0)
        self.left.next = self.right
        self.right.prev = self.left

    }

    func remove(_ node: Node) {
        let prev = node.prev
        let nxt = node.next
        prev?.next = nxt
        nxt?.prev = prev
    }

    func insert(_ node: Node) {
        let prev = self.right.prev
        let nxt = self.right
        prev?.next = node
        nxt.prev = node
        node.next = nxt
        node.prev = prev
    }

    func get(_ key: Int) -> Int {
        if let node = self.cache[key] {
            self.remove(node)
            self.insert(node)
            return node.val
        }
        return -1
    }

    func put(_ key: Int, _ value: Int) {
        if self.cache[key] != nil {
            self.remove(self.cache[key]!)
        }
        self.cache[key] = Node(key, value)
        self.insert(self.cache[key]!)

        if self.cache.count > self.capacity {
            let lru = self.left.next!
            self.remove(lru)
            self.cache.removeValue(forKey: lru.key)
        }
    }
}

Explanation

To solve this problem we will need an additional class Node that will be storing key, value pairs, and we are also going to have pointers prev and next that will point to the previous and next Node accordingly.

In our hashmap, which we will call cache, we will be mapping our key to Node.

We will also need left and right pointers that will store our LRU and most recent values.

When we call our get operation, we will be returning our value if it exists in our cache. We also should not forget to update our LRU and most recent pointers after we get the value. To do that, we will need two helper functions β€” remove, and insert β€” where remove will be removing the node from the list and insert will be inserting the node to the right.

When we call the put operation and the key already exists in our cache, we will remove that node and replace it with a new one.

Lastly, if our cache count exceeds the given capacity, we will need to remove the LRU value from the list and our cache.

Time/ Space complexity

  • Time complexity: O(1) for each put and get operation
  • Space complexity: O(n)
