The problem

You are given an array of integers nums, and there is a sliding window of size k which is moving from the very left of the array to the very right. You can only see the k numbers in the window. Each time the sliding window moves right by one position.

Return the max sliding window.

Examples

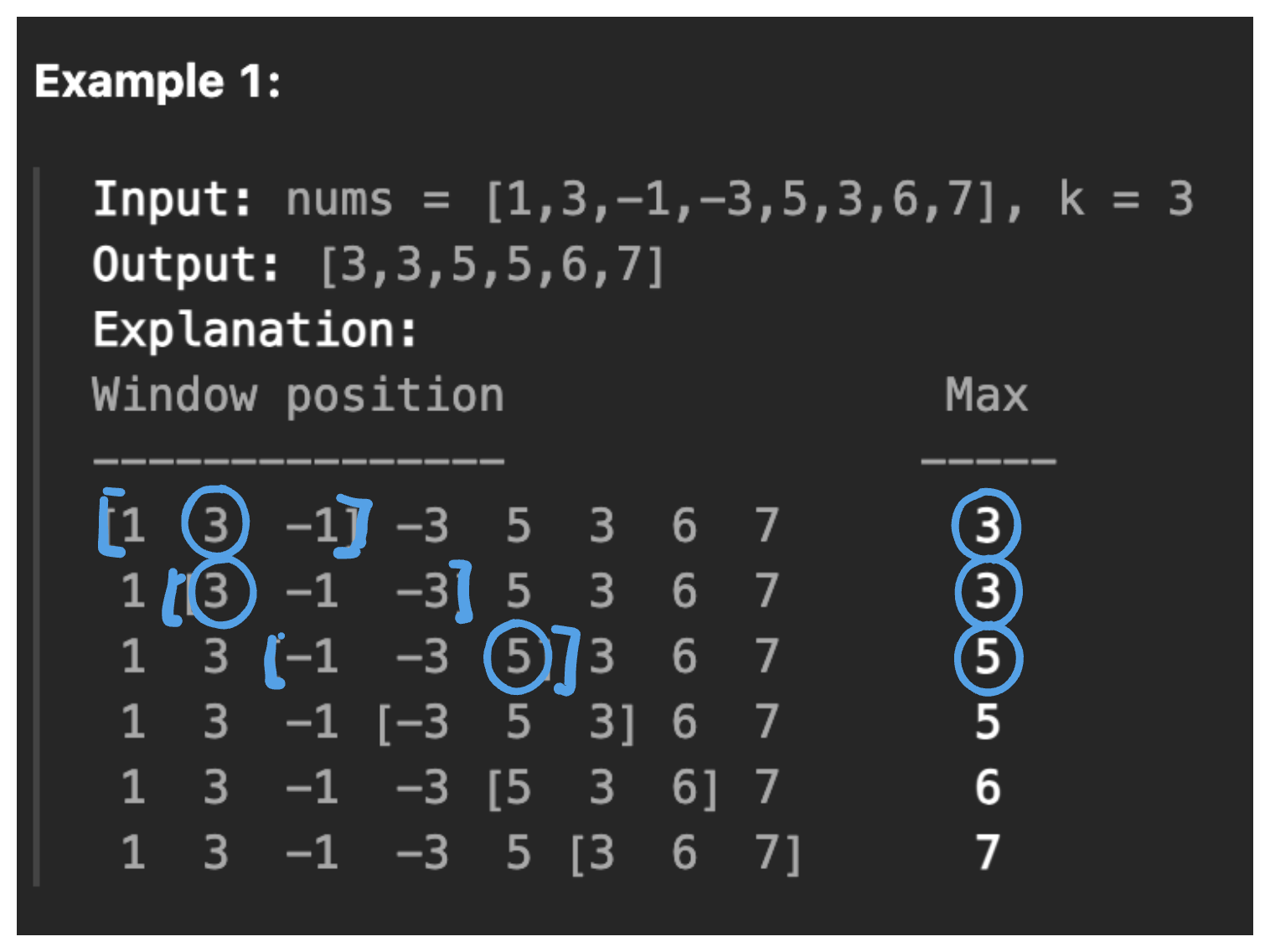

Input: nums = [1,3,-1,-3,5,3,6,7], k = 3
Output: [3,3,5,5,6,7]
Explanation:
Window position                Max
---------------               -----
[1  3  -1] -3  5  3  6  7       3
 1 [3  -1  -3] 5  3  6  7       3
 1  3 [-1  -3  5] 3  6  7       5
 1  3  -1 [-3  5  3] 6  7       5
 1  3  -1  -3 [5  3  6] 7       6
 1  3  -1  -3  5 [3  6  7]      7

Input: nums = [1], k = 1
Output: [1]

Constraints

  • 1 <= nums.length <= 10^5
  • -10^4 <= nums[i] <= 10^4
  • 1 <= k <= nums.length

Explanation

Before we jump into the solution, let’s look at our example with nums = [1,3,-1,-3,5,3,6,7], k = 3 We can see that at the first position we have max value 3, which we add to our output array.

  • At the next position, we see that our max is still 3, so we put it in our output.
  • At the next position, we see that our max value is 5, which we put in our output.

You might recognize one solution to this problem immediately, by finding max in the window array.

Brute Force Solution

func maxSlidingWindow(_ nums: [Int], _ k: Int) -> [Int] {
    var res: [Int] = []
    let n = nums.count

    for i in 0 ..< n - k + 1 {
        var maxVal = nums[i]

        for j in i ..< i + k {
            maxVal = max(maxVal, nums[j])
        }

        res.append(maxVal)
    }

    return res
}

Explanation

Above we learn that we can solve this problem in a brute force way by going through each window and scanning through the array and finding the max value. This solution is not very efficient because we have repetitive work when we scan the array. But we can optimize it even further and get O(n) time.

Time / Space complexity

  • Time complexity: O(k * n)
  • Space complexity: O(1) extra space, O(n - k + 1) for the output array
  • Where k is the size of the window, and n is the length of the input array.

Deque Solution

func maxSlidingWindow(_ nums: [Int], _ k: Int) -> [Int] {
    var res: [Int] = []

    var q: Deque<Int> = Deque()
    var l = 0
    var r = 0

    while r < nums.count {
        while !q.isEmpty && nums[q.last!] < nums[r] {
            q.removeLast()
        }

        q.append(r)

        if l > q[0] {
            q.removeFirst()
        }

        if (r + 1) >= k {
            res.append(nums[q[0]])
            l += 1
        }

        r += 1
    }

    return res
}

Explanation

From the brute force solution we learn that we can eliminate repetitive work.

  • If we have a window and we see a value that is greater than the previous values in our window, then we can eliminate those values from our window. We can do this by using the Deque data structure.
  • Values in deque are always going to be in decreasing order.

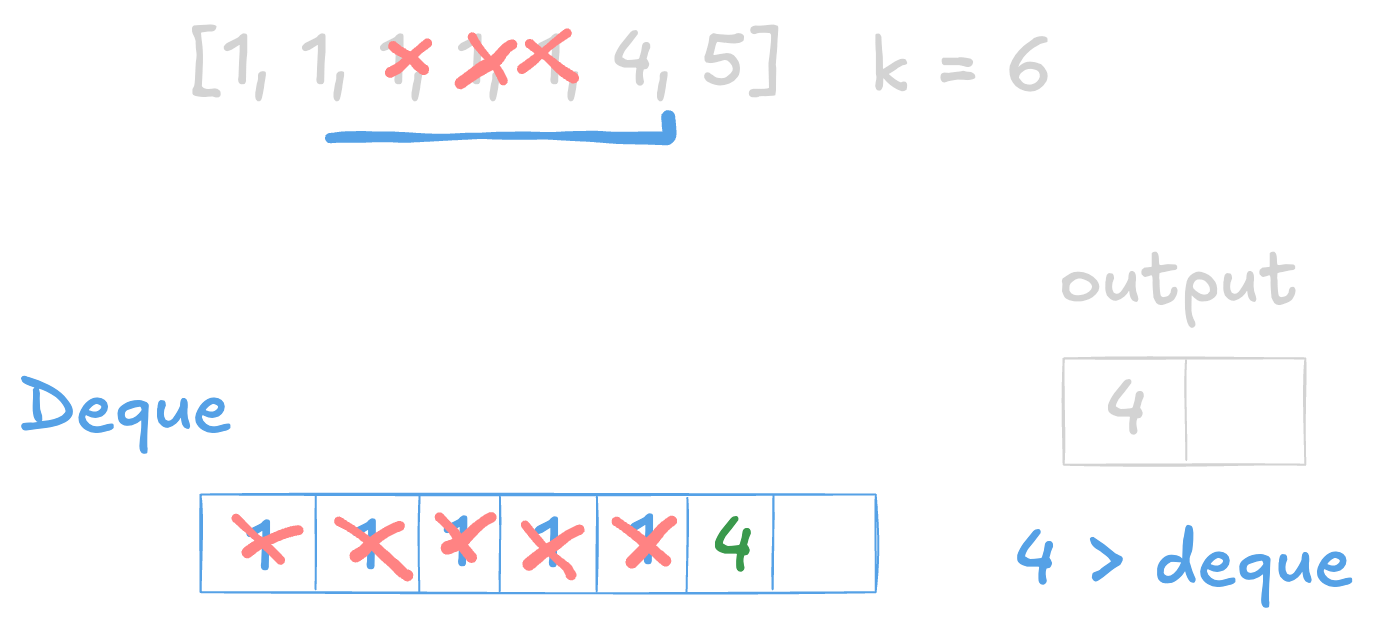

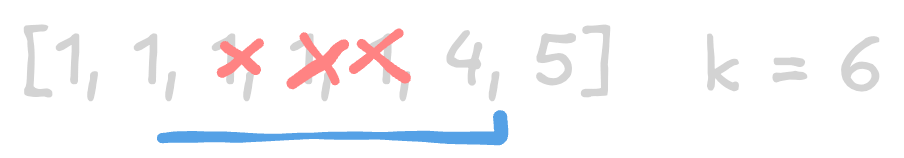

Since value 4 is greater than the rightmost position in our deque, we can pop it.

  • After that, we are going to make a comparison again. Value 4 is still at the top of our deque, so we are going to pop it.
  • We will continue popping until we have popped all elements.
  • Next, we will add value 4 to our output.

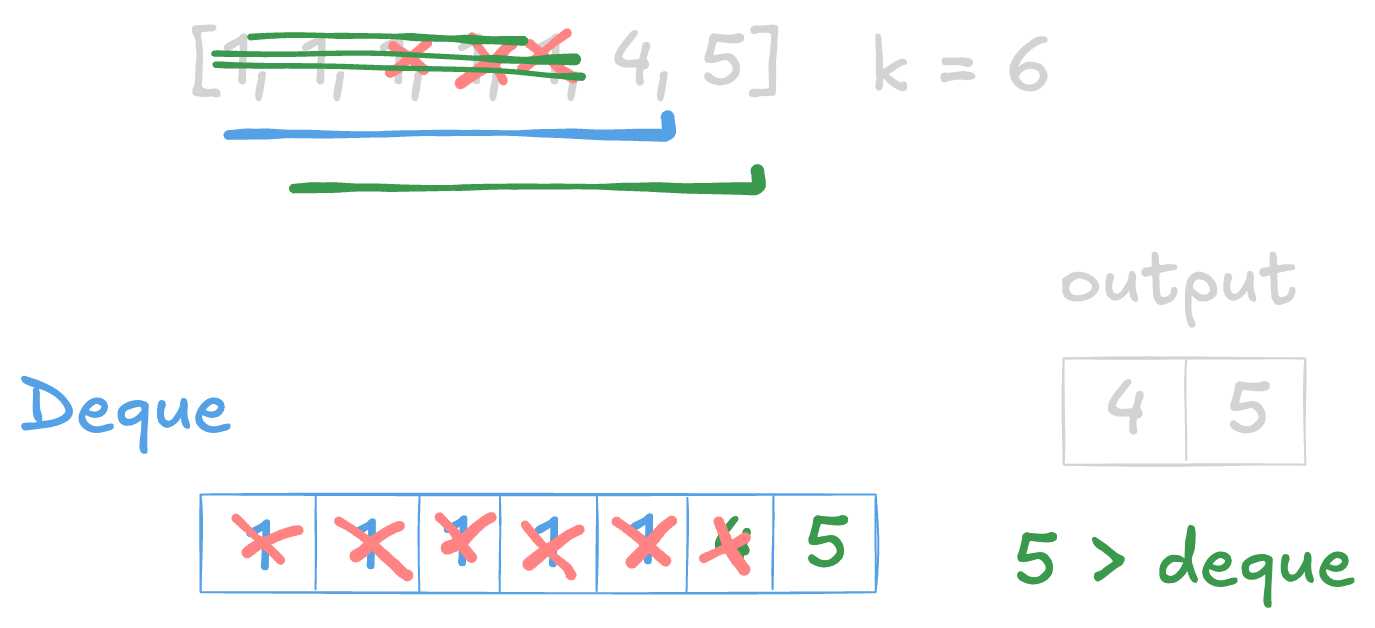

Now, we shift our window by one position, and we introduce a new element 5.

  • We need to check if 5 is greater than the value at the top of our deque.
  • After the comparison, we see that 4 < 5, so we remove value 4 from our deque and add value 5.
  • We also add value 5 to our output.

This solution is more efficient because adding and removing elements from a deque takes O(1) time, so the overall time complexity will be O(n).

This type of problem is called a monotonic decreasing queue. The reason behind this is that our queue is always going to be in decreasing order.

Time / Space complexity

  • Time complexity: O(n)
  • Space complexity: O(n)
