The problem

You are given an n x n 2D matrix representing an image, rotate the image by 90 degrees (clockwise).

You have to rotate the image in-place, which means you have to modify the input 2D matrix directly. DO NOT allocate another 2D matrix and do the rotation.

Examples

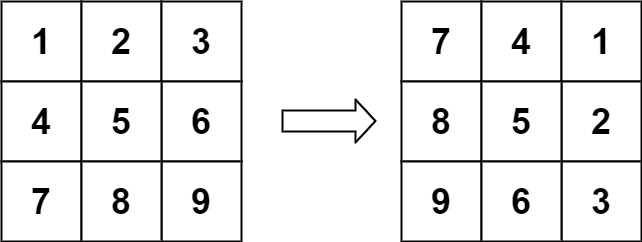

Input: matrix = [[1,2,3],[4,5,6],[7,8,9]]
Output: [[7,4,1],[8,5,2],[9,6,3]]

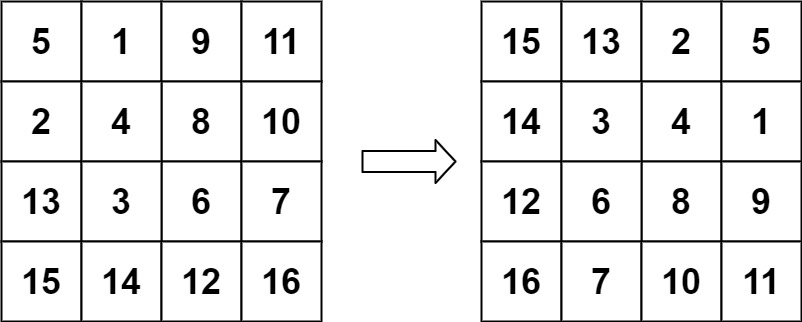

Input: matrix = [[5,1,9,11],[2,4,8,10],[13,3,6,7],[15,14,12,16]]
Output: [[15,13,2,5],[14,3,4,1],[12,6,8,9],[16,7,10,11]]

Constraints

  • n == matrix.length == matrix[i].length
  • 1 <= n <= 20
  • -1000 <= matrix[i][j] <= 1000

Explanation

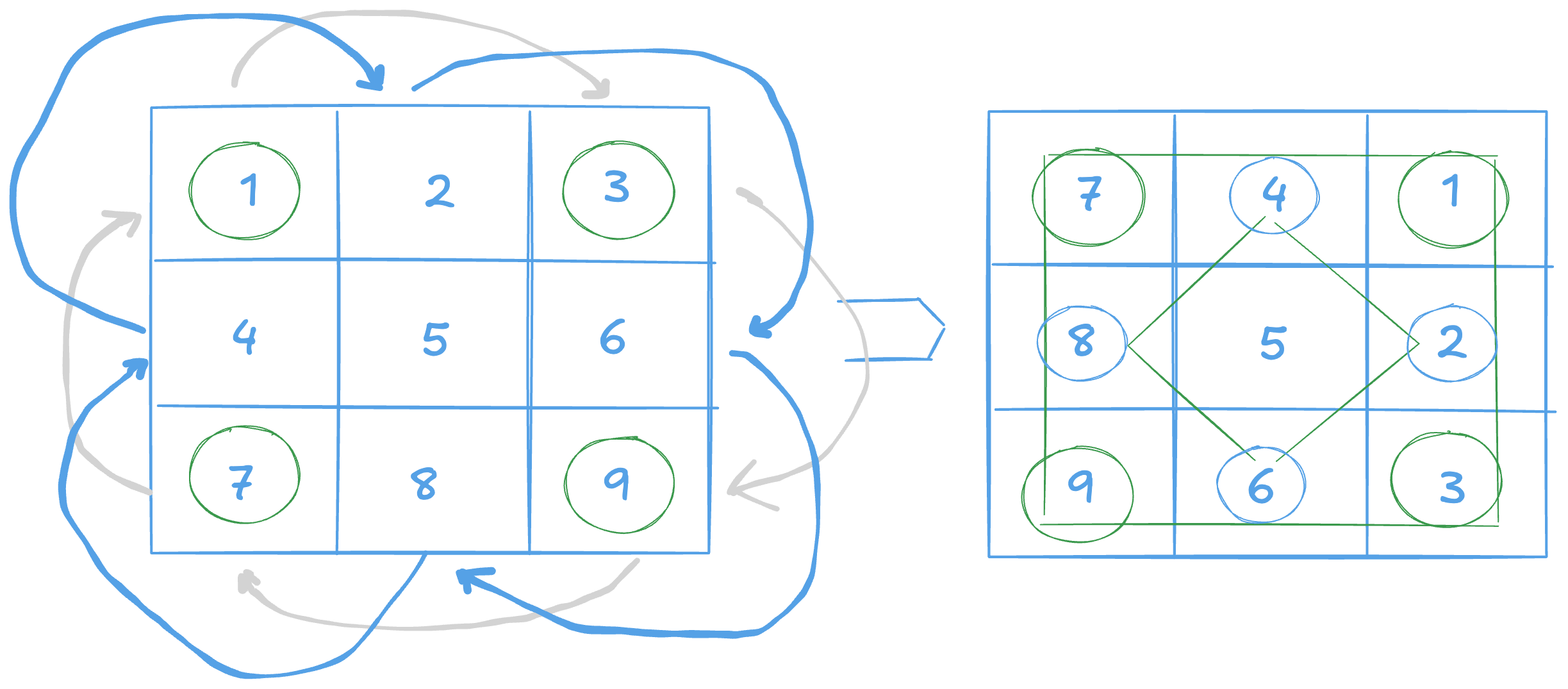

Before we jump to the solution, let’s look at how rotation was done to the matrix = [[1,2,3],[4,5,6],[7,8,9]].

The problem occurs when you move value 1 to the position of value 3, because you have to save value 3 temporarily. The same logic applies to values 9 and 7. We also have other values in our outer layer that we need to take care of, values 4, 2, 6, 8. During rotation:

  • value 2 is going to replace value 6
  • value 6 is going to replace value 8
  • value 8 is going to replace value 4
  • value 4 is going to replace value 2

Lastly, we have the left value 5, that has size 1 by 1, and we can not rotate it.

Solution

func rotate(_ matrix: inout [[Int]]) {
    let n = matrix.count
    var l = 0
    var r = n - 1

    while l < r {
        for i in 0 ..< r - l {
            let top = l
            let bottom = r
            let topLeft = matrix[top][l + i]

            matrix[top][l + i] = matrix[bottom - i][l]
            matrix[bottom - i][l] = matrix[bottom][r - i]
            matrix[bottom][r - i] = matrix[top + i][r]
            matrix[top + i][r] = topLeft
        }
        r -= 1
        l += 1
    }
}

Explanation

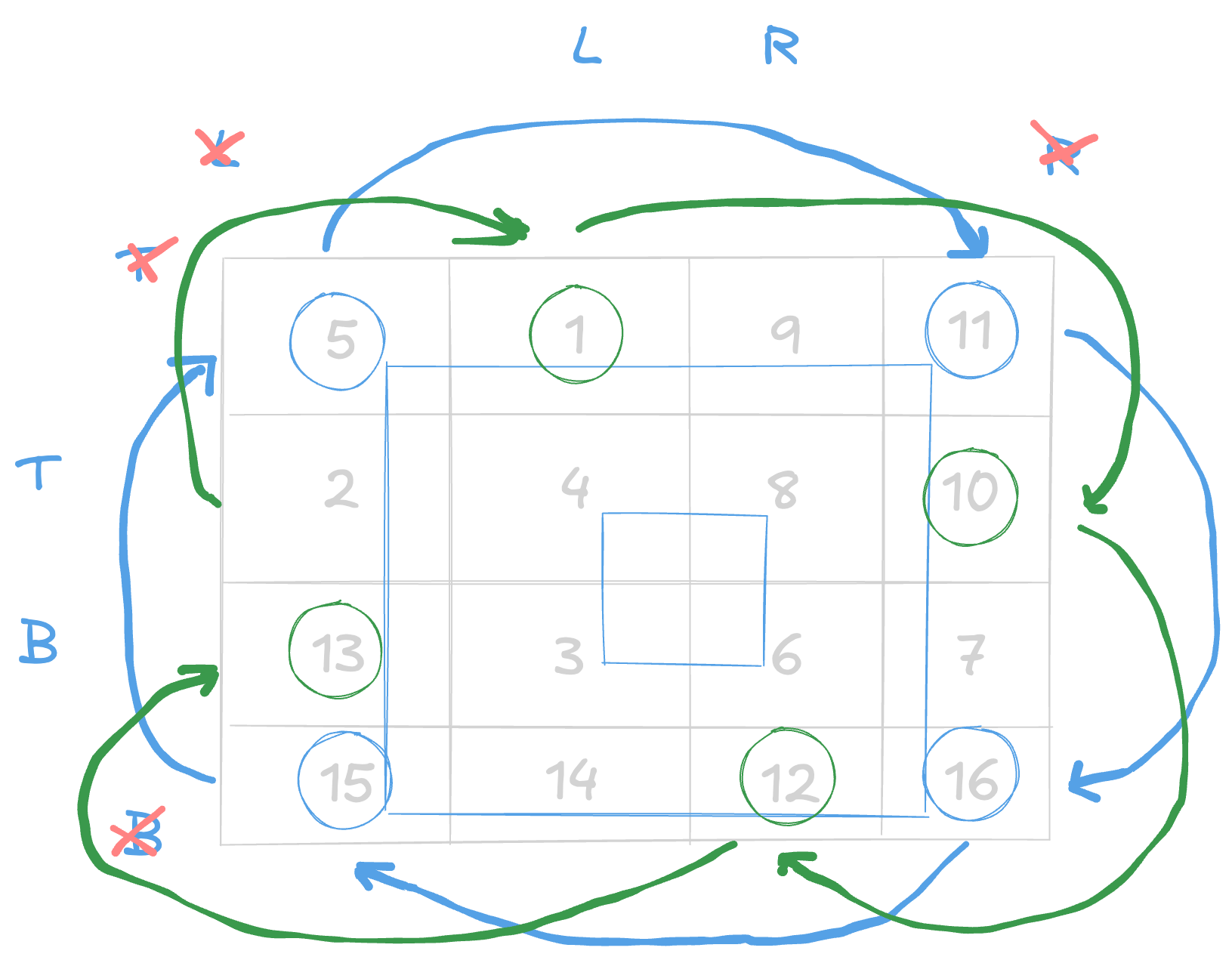

Let’s look at another example.

We are going to start rotating from the outermost square layer. After that, we are going to move inward, and we are going to do rotation inside the matrix. The rotation is going to start from top left and we will go clockwise.

  • When we did the outermost layer, now we need to do the inside layer.
  • We can treat the inside of the matrix as a subproblem, all we need to do is to shift our pointers by 1.

As for in-memory replacement, we are going to keep our value in a temporary variable and replace it with the next value. We can slightly improve our solution with temporary variables by doing it in reverse order. Instead of moving values clockwise, we will do it counter-clockwise. The reason we do this is because we only need one temporary variable, which will make the code a little bit easier.

Time/Space complexity

  • Time complexity: O(n^2)
  • Space complexity: O(1)
