The problem
Design and implement a data structure for a Least Frequently Used (LFU) cache.
Implement the LFUCache class:
LFUCache(int capacity)Initializes the object with thecapacityof the data structure.int get(int key)Gets the value of thekeyif thekeyexists in the cache. Otherwise, returns-1.void put(int key, int value)Updates the value of thekeyif present, or inserts thekeyif not already present. When the cache reaches itscapacity, it should invalidate and remove the least frequently used key before inserting a new item. For this problem, when there is a tie (i.e., two or more keys with the same frequency), the least recently usedkeywould be invalidated.
To determine the least frequently used key, a use counter is maintained for each key in the cache. The key with the smallest use counter is the least frequently used key.
When a key is first inserted into the cache, its use counter is set to 1 (due to the put operation). The use counter for a key in the cache is incremented whenever either a get or put operation is called on it.
The functions get and put must each run in O(1) average time complexity.
Example 1:
Input
["LFUCache", "put", "put", "get", "put", "get", "get", "put", "get", "get", "get"]
[[2], [1, 1], [2, 2], [1], [3, 3], [2], [3], [4, 4], [1], [3], [4]]
Output
[null, null, null, 1, null, -1, 3, null, -1, 3, 4]
Explanation
// cnt(x) = the use counter for key x
// cache=[] will show the last used order for tiebreakers (leftmost element is most recent)
LFUCache lfu = new LFUCache(2);
lfu.put(1, 1); // cache=[1,_], cnt(1)=1
lfu.put(2, 2); // cache=[2,1], cnt(2)=1, cnt(1)=1
lfu.get(1); // return 1
// cache=[1,2], cnt(2)=1, cnt(1)=2
lfu.put(3, 3); // 2 is the LFU key because cnt(2)=1 is the smallest, invalidate 2.
// cache=[3,1], cnt(3)=1, cnt(1)=2
lfu.get(2); // return -1 (not found)
lfu.get(3); // return 3
// cache=[3,1], cnt(3)=2, cnt(1)=2
lfu.put(4, 4); // Both 1 and 3 have the same cnt, but 1 is LRU, invalidate 1.
// cache=[4,3], cnt(4)=1, cnt(3)=2
lfu.get(1); // return -1 (not found)
lfu.get(3); // return 3
// cache=[3,4], cnt(4)=1, cnt(3)=3
lfu.get(4); // return 4
// cache=[4,3], cnt(4)=2, cnt(3)=3
Constraints:
1 <= capacity <= 10^40 <= key <= 10^50 <= value <= 10^9- At most
2 * 10^5calls will be made togetandput.
Explanation
In order to solve this problem, I would recommend solving the LRU problem because the LFU solution is built on top of it. It would be very hard to code it up, especially the part with pointers. The high-level idea is not very difficult, but when it comes to implementation, you must handle a lot of corner cases.
From just reading through the problem and examples, you can see two main ideas that we should care about:
- The first one is that we must handle the
capacity; we can’t just infinitely put data. But it is the easiest part. - The second one is where all the fun begins. We must design a data structure that will hold the count of how many times a key was accessed, and we also must deal with keys that have the same frequency by removing the LRU (least recently used) element.
I think we can split this problem into three parts:
- First is going to be the logic for handling capacity (counting and removing elements when the capacity is reached).
- Second is handling
countfor frequently accessed elements (initiating count with1and updating it when thegetmethod is called) without forgetting theputoperation. - Third is implementing LRU logic.
My first thought was just to use a hashmap. I knew that I would hit the ceiling, but I wanted to see how far I could go and later come up with a better solution.
By using a hashmap, you might be able to pass one test or maybe even more, but you will eventually hit a wall called the tie-breaker when you try to remove elements with the same frequency.
If you have ever solved problems that had some tie-breaker in them, then you might ask why we can’t use a Min Heap. And I will say that you can, and it is actually one of the ways to solve this problem. But as you know, it will take O(n*logn) time, which is not what we were asked for in the description.
At this point, in order to go forward, we need to understand what LRU is.
I won’t go into details about LRU. I will just say that if you go and look at how an LRU cache is implemented, you will find that it’s usually done with a Doubly Linked List and a hash map.
But I thought, why can’t we just use a singly linked list? When I visualized it, I understood that in order for get/put operations to be efficient (O(1) time), we need to know the previous node and connect it with the next one. Having only one next node will push us to search for the previous node, which could take O(n) time. So it is better to stick with a Doubly Linked List.

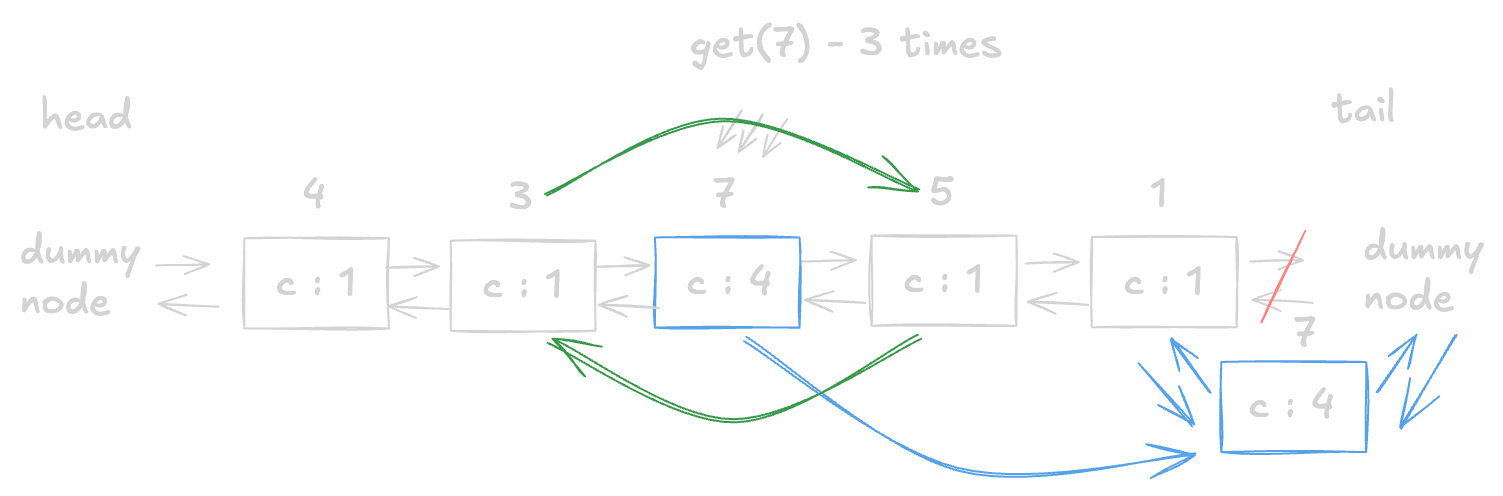

For example, if we had an input 4, 3, 7, 5, 1 and we requested the value 7 three times, we would move 7 to the head, and the previous node would be connected to the next in O(1) time.
The good news is that LFU uses the same data structures as an LRU does. Now we need to figure out how it all fits together. This part was very difficult for me because, at first, I thought that we only needed one hash map. After a few trial runs, I learned that it is impossible to put all the data in one hashmap.
So, to solve this problem, we are going to need two hashmaps. In the first, we are going to store a key with a node, and in the second one, a frequency with a linked list.
We will need a few helper functions (getOrCreateLinkedList and updateFrequency) to keep the code readable.
Then everything else is managing corner cases when capacity is reached or when a node does or does not exist in the hashmap.
Double Linked List Solution
Code
final class ListNode {
let key: Int
var val: Int
var freq: Int
var prev: ListNode?
var next: ListNode?
init(_ key: Int, _ val: Int) {
self.key = key
self.val = val
self.freq = 1
self.prev = nil
self.next = nil
}
}
final class LinkedList {
private var head: ListNode
private var tail: ListNode
private(set) var size: Int
init() {
self.head = ListNode(-1, -1)
self.tail = ListNode(-1, -1)
self.head.next = self.tail
self.tail.prev = self.head
self.size = 0
}
func pushToTail(_ node: ListNode) {
let prev = self.tail.prev
prev?.next = node
node.prev = prev
node.next = self.tail
self.tail.prev = node
self.size += 1
}
func remove(_ node: ListNode?) {
let prev = node?.prev
let next = node?.next
prev?.next = next
next?.prev = prev
node?.prev = nil
node?.next = nil
self.size -= 1
}
func removeFromHead() -> ListNode? {
if self.size == 0 {
return nil
}
let node = self.head.next
self.remove(node)
return node
}
}
final class LFUCache {
private let capacity: Int
private var lfuCount: Int
private var nodeMap: [Int: ListNode]
private var linkedListMap: [Int: LinkedList]
init(_ capacity: Int) {
self.capacity = capacity
self.lfuCount = 0
self.nodeMap = [:]
self.linkedListMap = [:]
}
func get(_ key: Int) -> Int {
guard let node = nodeMap[key] else {
return -1
}
updateFrequency(node)
return node.val
}
func put(_ key: Int, _ value: Int) {
guard capacity > 0 else {
return
}
if let node = nodeMap[key] {
node.val = value
updateFrequency(node)
return
}
if nodeMap.count == capacity {
guard let node = linkedListMap[lfuCount]?.removeFromHead() else {
return
}
nodeMap.removeValue(forKey: node.key)
}
let node = ListNode(key, value)
nodeMap[key] = node
getOrCreateLinkedList(for: 1).pushToTail(node)
lfuCount = 1
}
func updateFrequency(_ node: ListNode) {
let freq = node.freq
let oldList = getOrCreateLinkedList(for: freq)
oldList.remove(node)
if freq == lfuCount && oldList.size == 0 {
lfuCount += 1
}
node.freq += 1
getOrCreateLinkedList(for: node.freq).pushToTail(node)
}
func getOrCreateLinkedList(for frequency: Int) -> LinkedList {
if let list = linkedListMap[frequency] {
return list
}
let list = LinkedList()
linkedListMap[frequency] = list
return list
}
}
Time/ Space complexity
- Time complexity: O(1) for each of the
getandputfunction calls. - Space complexity: O(n).
