The problem

You are given a list of airline tickets where tickets[i] = [from_i, to_i] represent the departure and the arrival airports of one flight. Reconstruct the itinerary in order and return it.

All of the tickets belong to a man who departs from "JFK", thus, the itinerary must begin with "JFK". If there are multiple valid itineraries, you should return the itinerary that has the smallest lexical order when read as a single string.

  • For example, the itinerary ["JFK", "LGA"] has a smaller lexical order than ["JFK", "LGB"].

You may assume all tickets form at least one valid itinerary. You must use all the tickets once and only once.

Examples

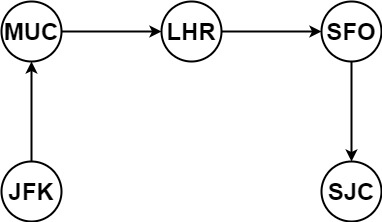

Input: tickets = [["MUC","LHR"],["JFK","MUC"],["SFO","SJC"],["LHR","SFO"]]
Output: ["JFK","MUC","LHR","SFO","SJC"]


Input: tickets = [["JFK","SFO"],["JFK","ATL"],["SFO","ATL"],["ATL","JFK"],["ATL","SFO"]]
Output: ["JFK","ATL","JFK","SFO","ATL","SFO"]
Explanation: Another possible reconstruction is ["JFK","SFO","ATL","JFK","ATL","SFO"] but it is larger in lexical order.

Constraints

  • 1 <= tickets.length <= 300
  • tickets[i].length == 2
  • from_i.length == 3
  • to_i.length == 3
  • from_i and to_i consist of uppercase English letters.
  • from_i != to_i

Explanation

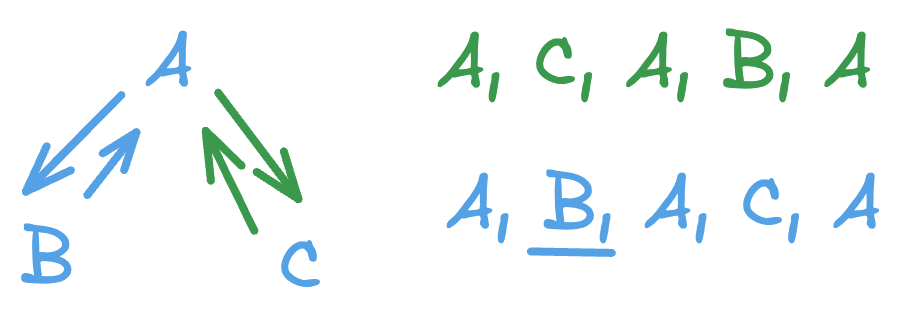

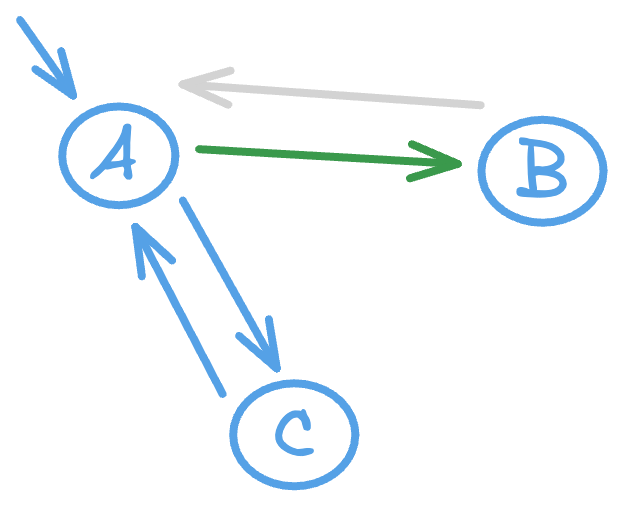

From the description of the problem we learn that we are given the array of tickets where a single ticket represents a graph edge from_i and to_i (in other words source and destination) that connects two nodes together, and where every node represents an airport. In the result we should return the reconstructed itinerary (flight history of the given tickets) of the man who started his flight from JFK by using tickets exactly once. Lastly, in case we have multiple solutions we want to return the result in lexical order, for example: Let’s imagine that we start from node A: One possible solution is to visit node C, and go back from C to A (A -> C -> A)

  • Next, we are going to visit node B, and go back from B to A (A -> B -> A)
  • As a result we would have A -> C -> A -> B -> A as a possible solution

We can also change the order and visit node B first so our result will look like this A -> B -> A -> C -> A

If we compare both of our results we can see that the second result is more preferable because it has the second character B that comes earlier in lexical order than C.

The way we are going to solve this problem is by using the Depth First Search algorithm and visiting our nodes but without reusing the same edge twice.

Solution

func findItinerary(_ tickets: [[String]]) -> [String] {
    var adj: [String: [String]] = [:]

    let sortedTickets = tickets.sorted { $0[0] < $1[0] || ($0[0] == $1[0] && $0[1] < $1[1]) }.reversed()

    for ticket in sortedTickets {
        let src = ticket[0]
        let dst = ticket[1]
        adj[src, default: []].append(dst)
    }

    var res: [String] = []

    func dfs(_ src: String) {
        while let destinations = adj[src], !destinations.isEmpty {
            let dst = adj[src]!.removeLast()
            dfs(dst)
        }
        res.append(src)
    }

    dfs("JFK")

    return res.reversed()
}

Explanation

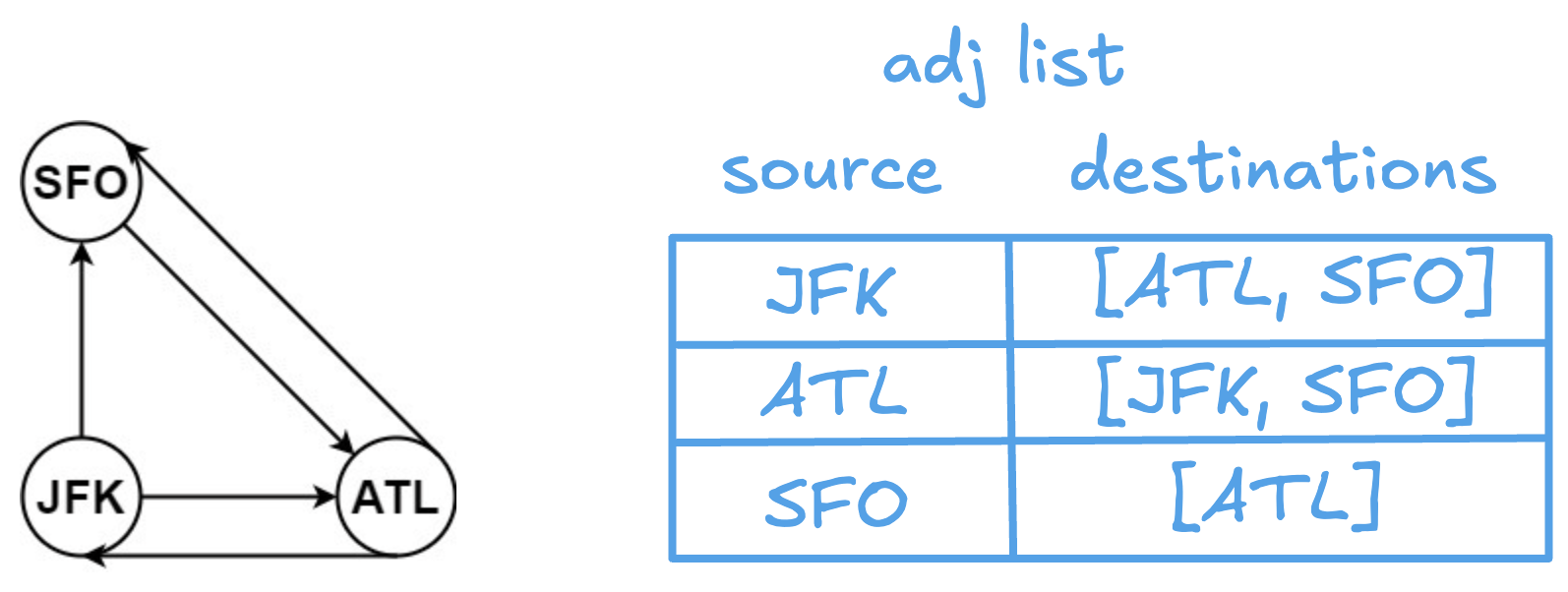

To solve this problem we are going to create an adjacency list that will help us traverse the graph. The adjacency list will have the source that we will map to its destinations. We are also going to sort our destinations because from the description of the problem we learn that if we have multiple results we must return the result that has the smaller lexical order. The way we are going to sort our input is by sorting based on the destination.

We are going to start building our result by using DFS and a visited set that will help us avoid visiting the same node twice by tracking what destinations we visited so far:

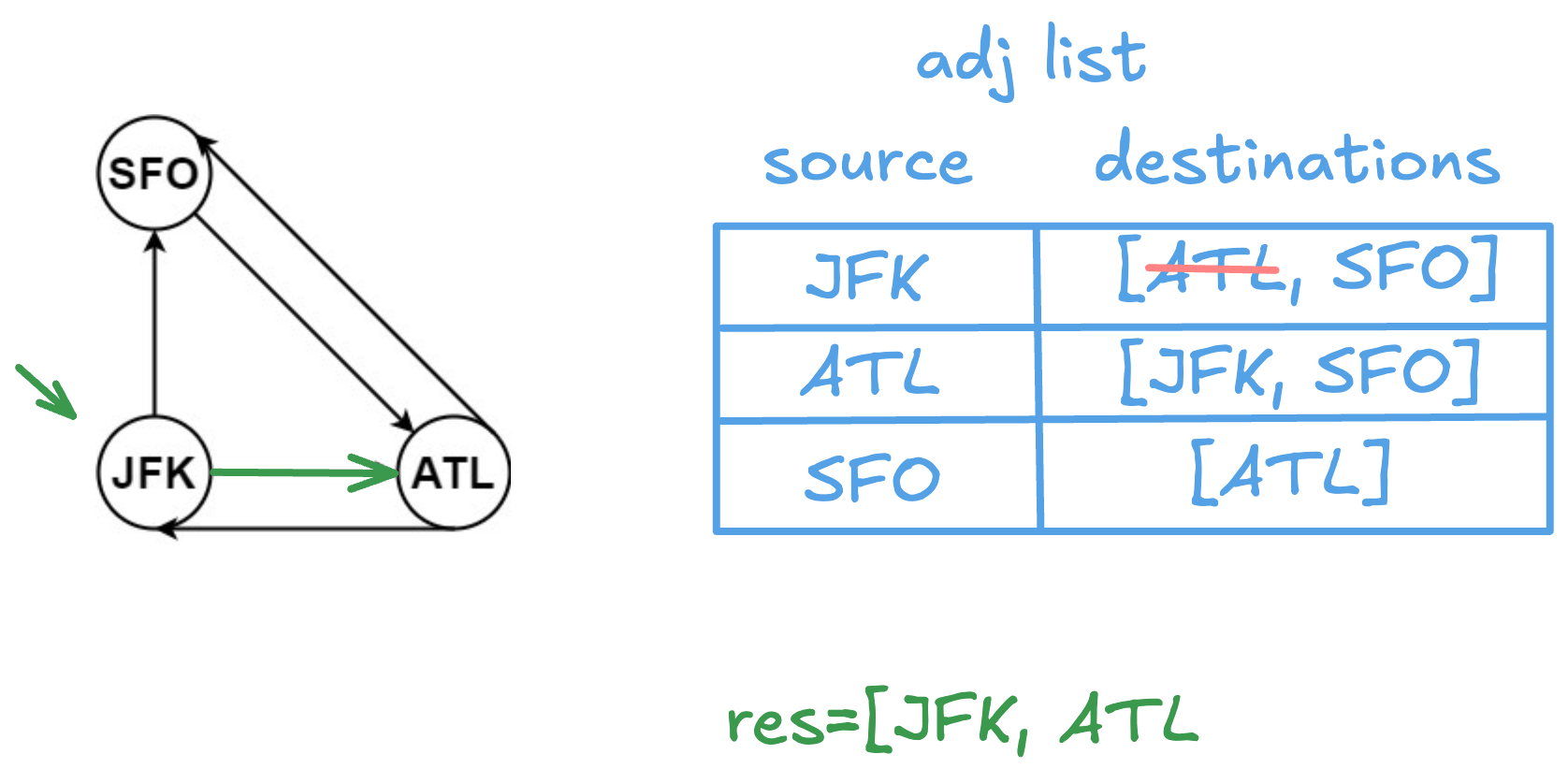

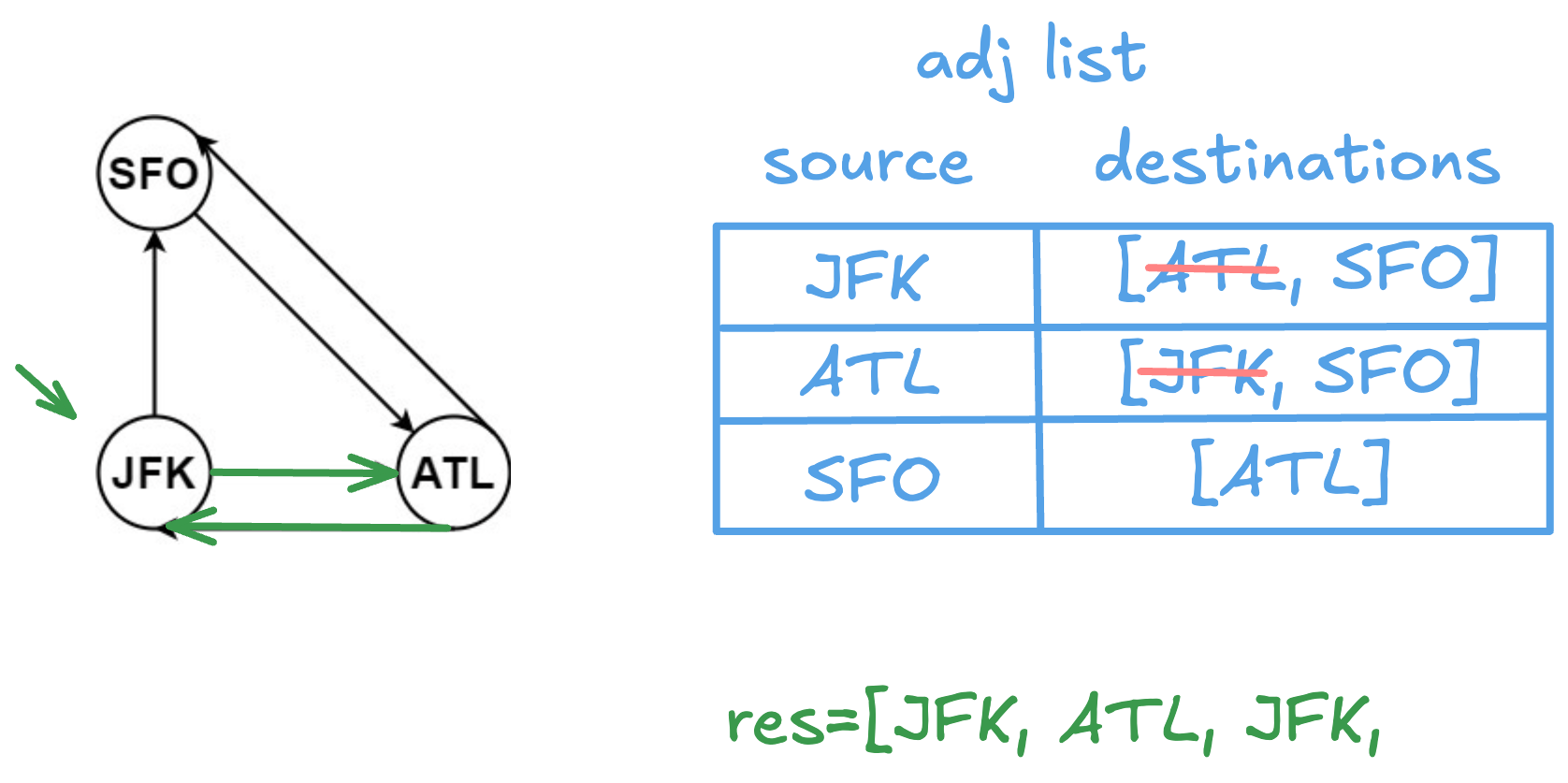

  • We will start from node JFK, after that we are going to visit its first destination ATL, remove it from our adjacency list and add it to our result
  • Next, from node ATL we are going to visit node JFK because it comes first in lexical order, remove it from the adjacency list and add it to our result.

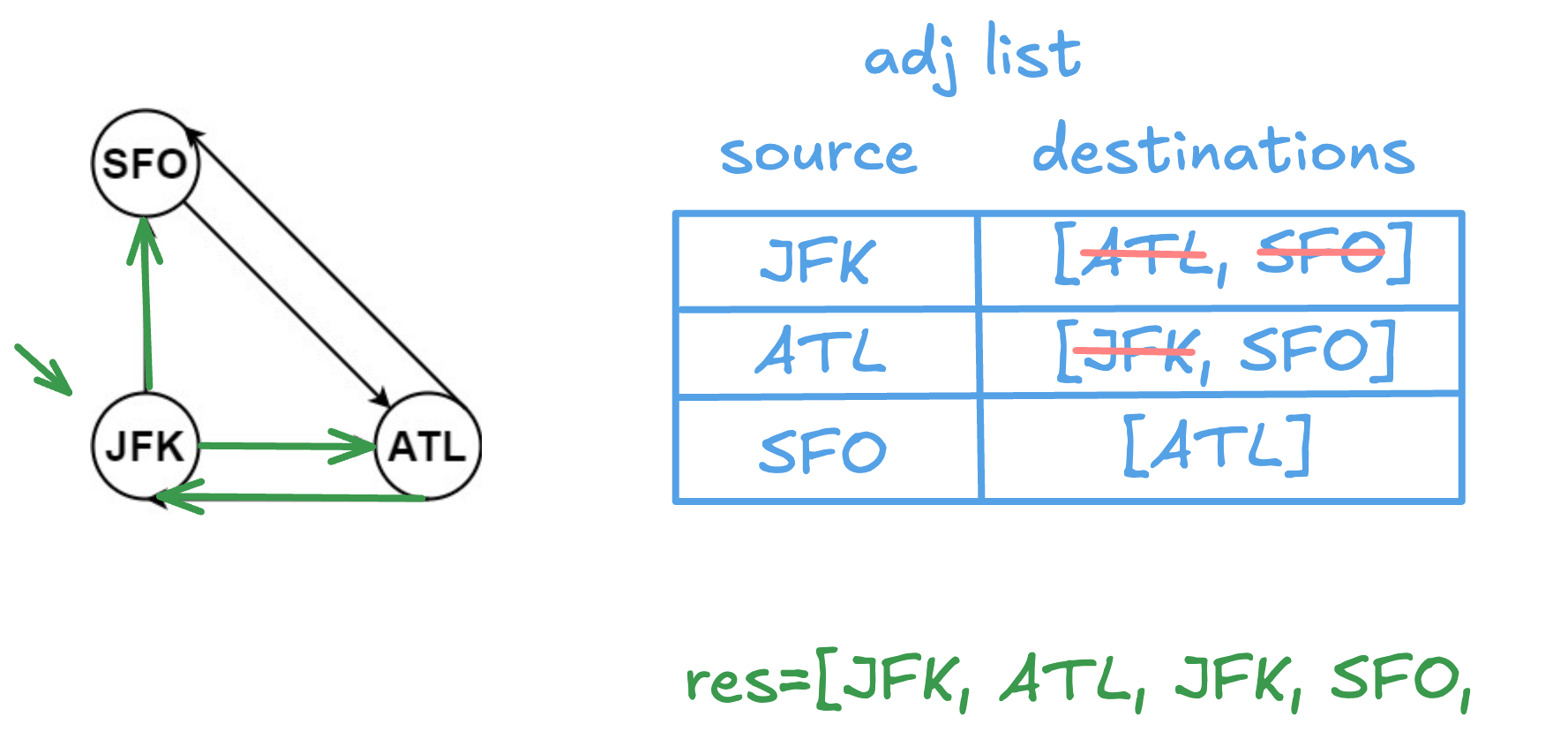

  • Next, following the same pattern as we did before, from node JFK we only have one outgoing edge SFO

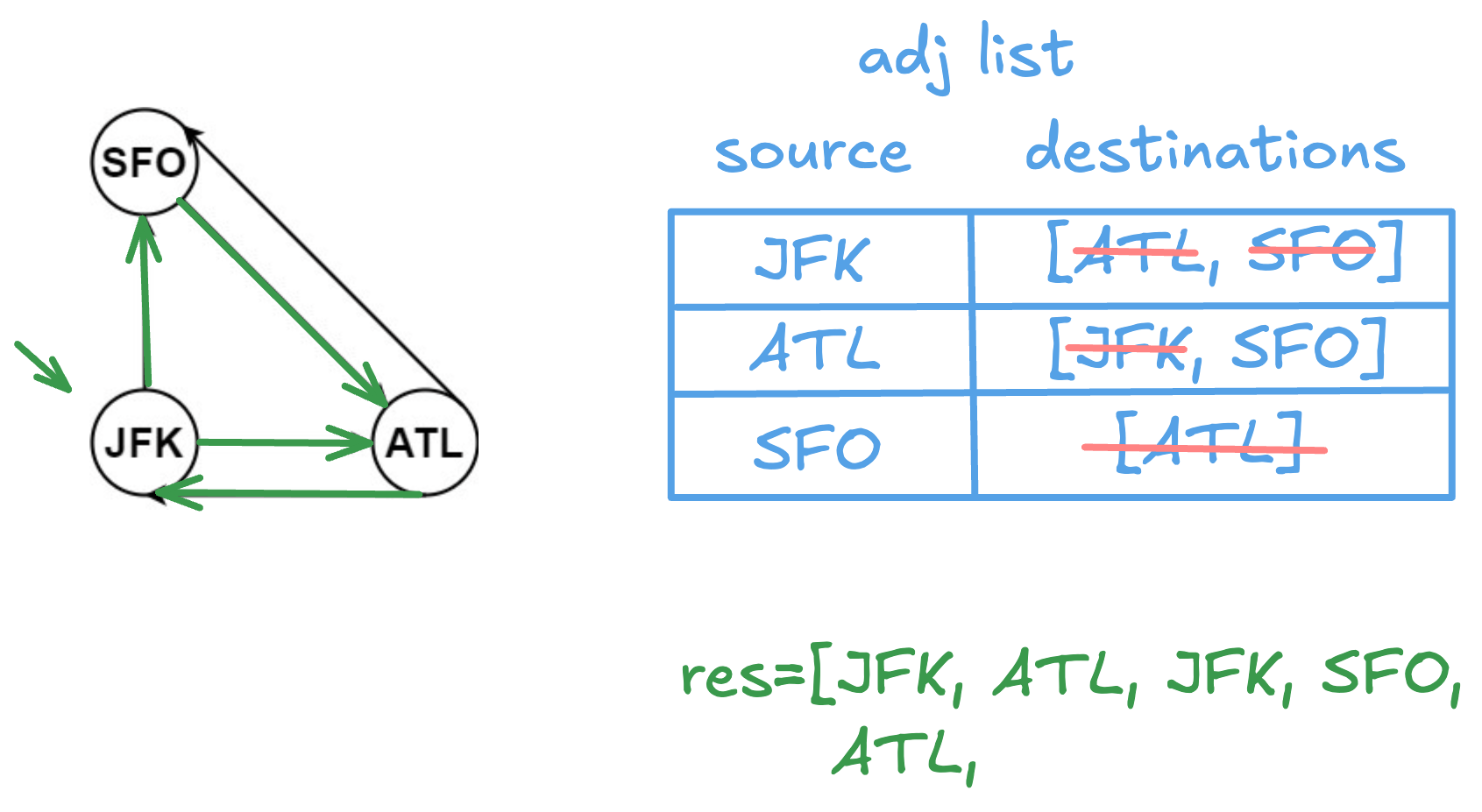

  • Next, from node SFO we are going to visit node ATL

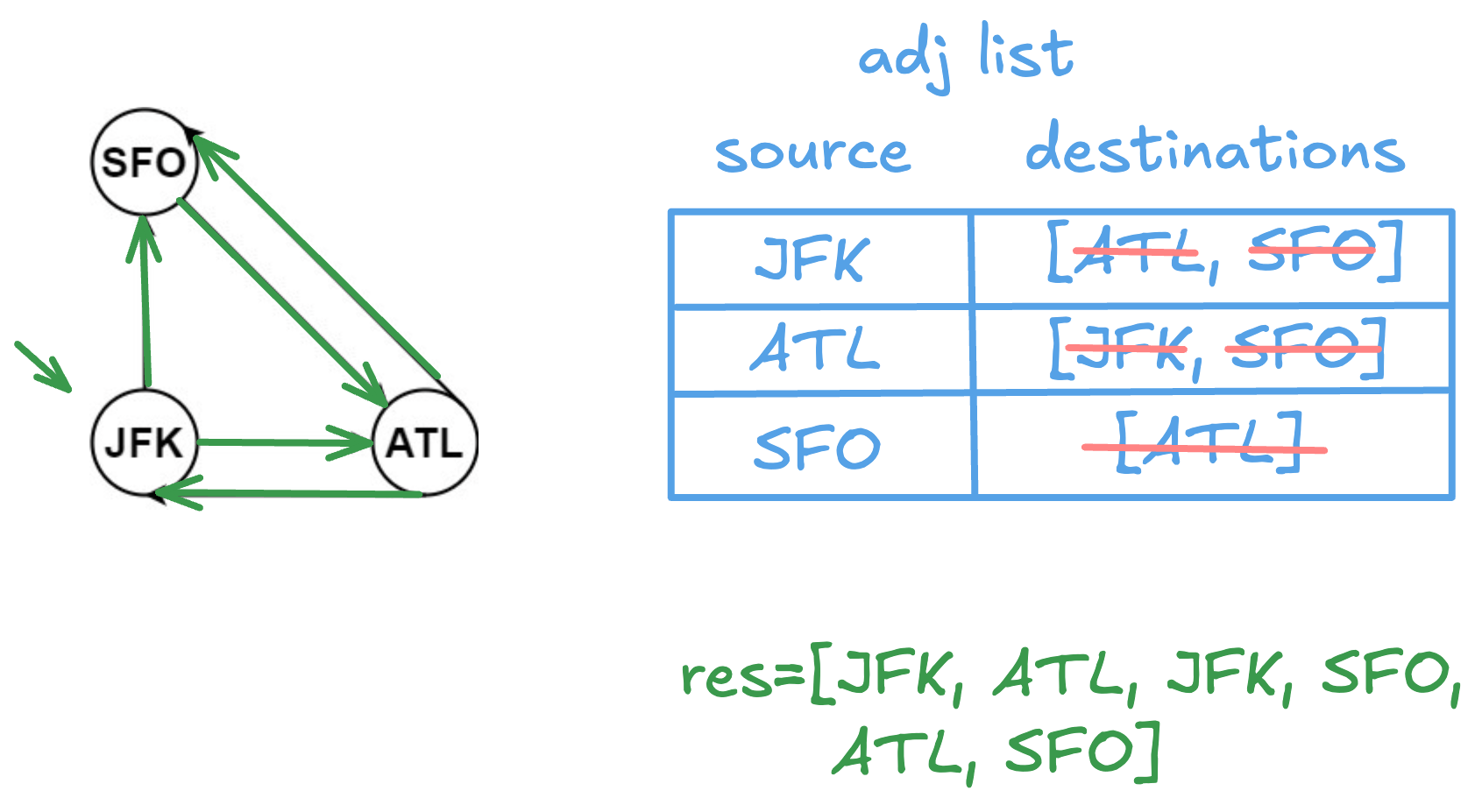

  • Lastly, from node ATL we are going to visit node SFO

Last note, the example above shows a graph with a best case scenario where we can visit every node. Now let’s look at the case when, if we visit the first node in lexical order, we can’t go back.

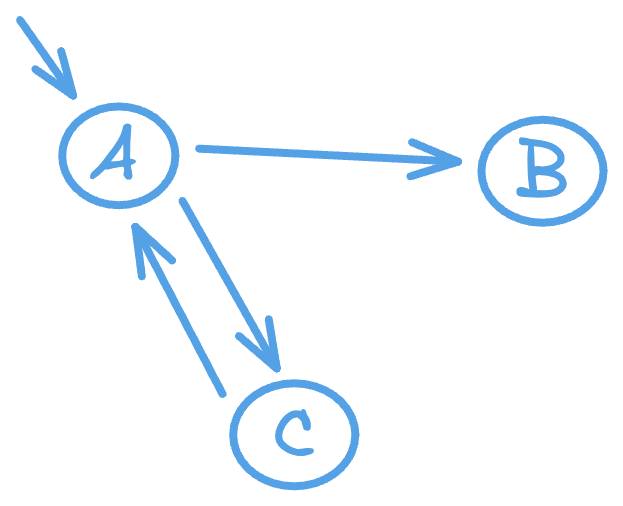

In this example we start from node A and we have two choices:

  • We can go to node B first or
  • We can go to node C

If we try to go to node B first we can’t go back to node A because we don’t have an outgoing edge. Therefore, we are going to backtrack to node A and visit node C even though it comes after B in lexical order.

This example shows that in some cases we are going to need to backtrack. When we go along one of the edges we might realize that it does not work and we are going to have to reverse our decision and travel along a different edge.

Time/ Space complexity

  • Time complexity: O(E * V)
  • Space complexity: O(E * V)
  • Where E is the number of tickets (edges) and V is the number of airports (vertices).

Thank you for reading! 😊
